Master Controller Panels

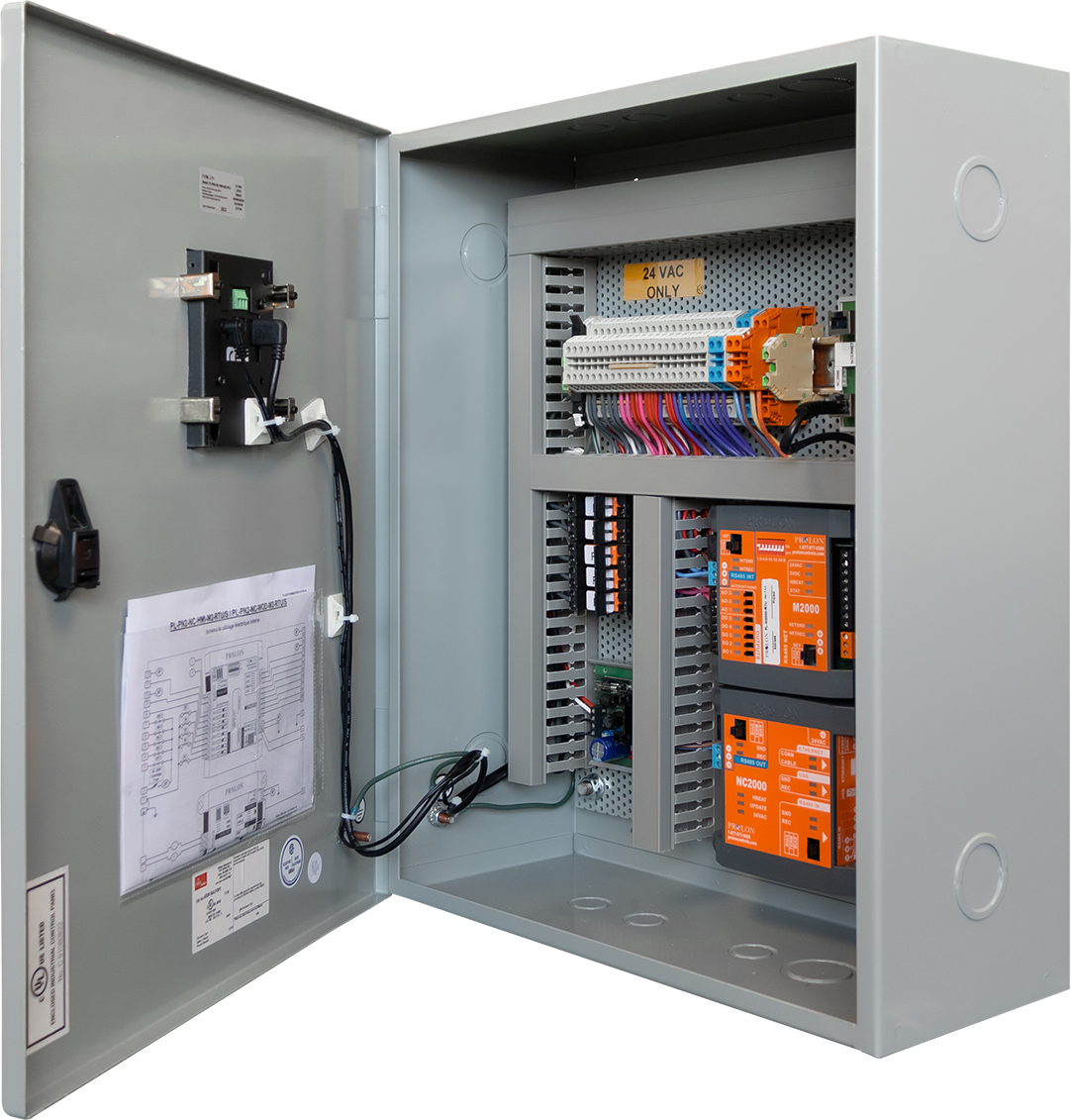

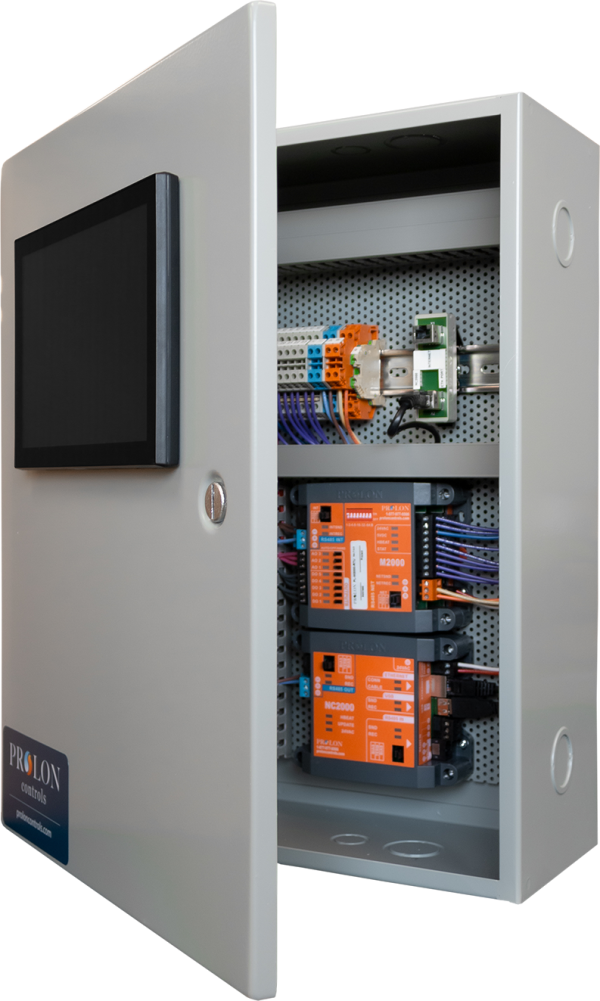

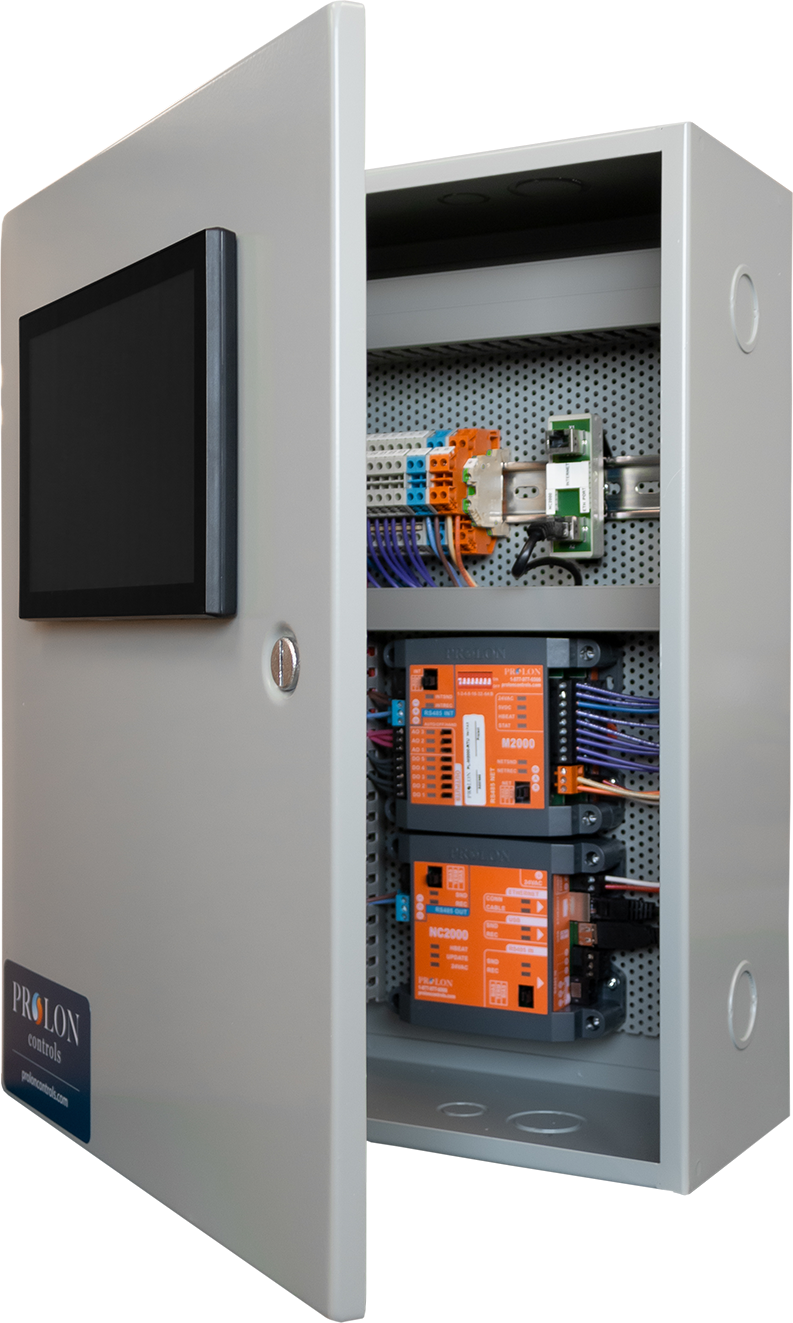

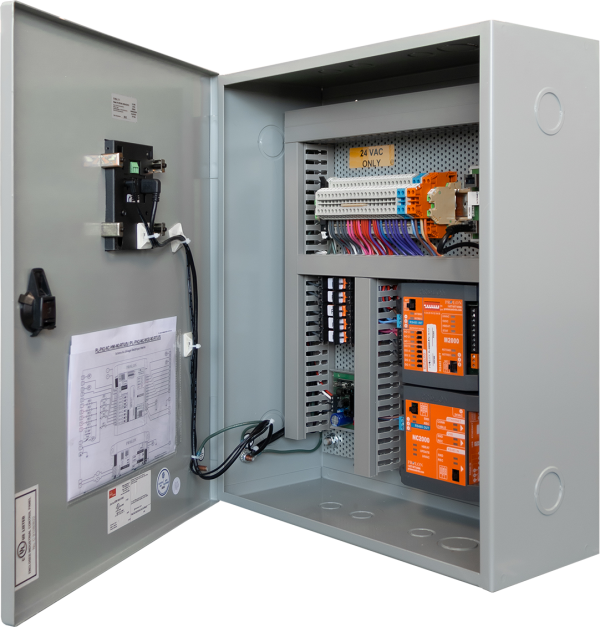

Our Master Panel is a combination of our NC2000 Network Controller and your choice of 1 M2000 or 1 C1050 controller in a prewired panel with display mounted on the panel door, ready for installation on any project. A single panel is needed to monitor your entire Prolon Control system, no matter the scope of your project. Users can view all controllers (complete with graphics), monitor all points, and access/change controller settings. All remote access and connectivity features of the NC2000 are still available in addition to the touchscreen. A password system is available on the touchscreen to restrict access to critical settings, or to lockout the project entirely.
For price on specific Panels, please contact us.
-
- Include a NC2000 and a choice of 1 M2000 or 1 C1050 controller built into a NEMA 1 Enclosure
- Dimensions: 20” (H) x 16” (W) x 6” (D) panel with top & bottom knockout holes
- Display: 10” tablet 8-core 1.2 GHz, IPS display HD 1080p, 2GB RAM
- Lockout project or restrict access with passwords
- 24AC to 24DC converter included
- Disconnect-Style Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24Vac power supply, communication)
- Panel wiring diagram included in the panel door for plug-and-play operation
- Complete panel is UL508A Certified
-
Specifications
- Include a NC2000 and a choice of 1 M2000 or 1 C1050 controller built into a NEMA 1 Enclosure
- Dimensions: 20” (H) x 16” (W) x 6” (D) panel with top & bottom knockout holes
- Display: 10” tablet 8-core 1.2 GHz, IPS display HD 1080p, 2GB RAM
- Lockout project or restrict access with passwords
- 24AC to 24DC converter included
- Disconnect-Style Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24Vac power supply, communication)
- Panel wiring diagram included in the panel door for plug-and-play operation
- Complete panel is UL508A Certified
