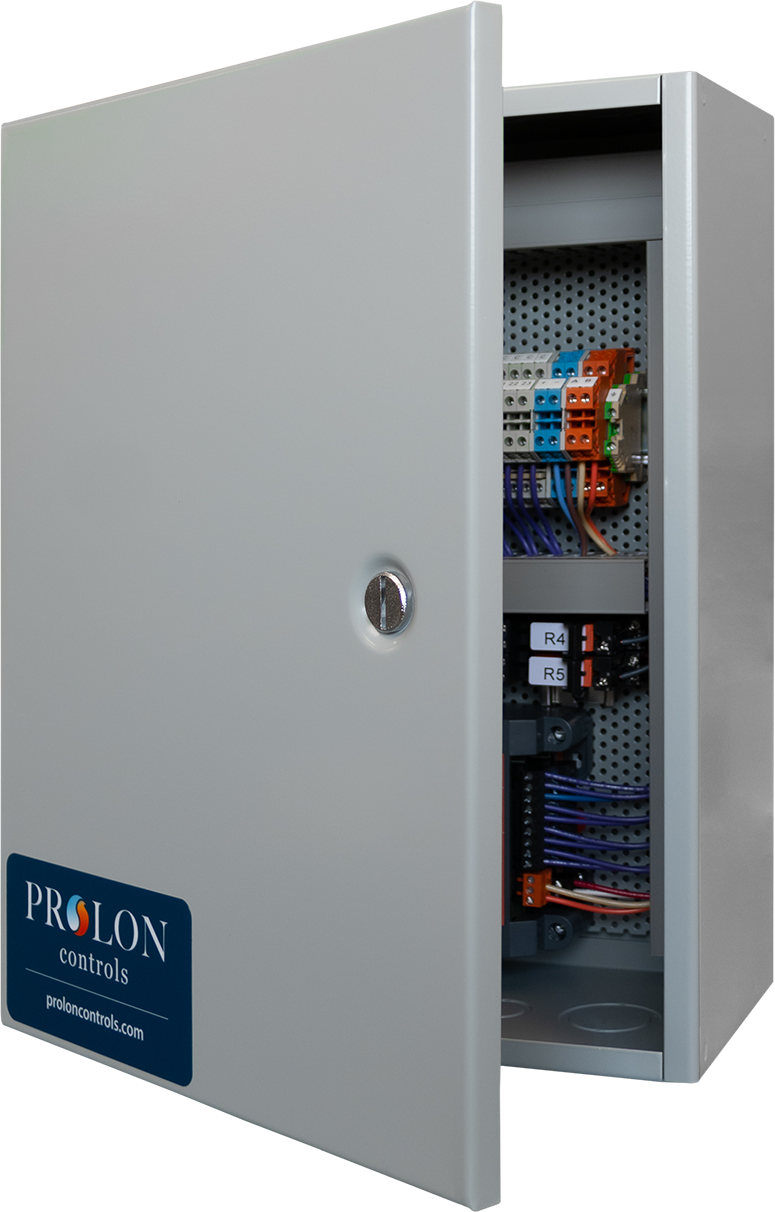

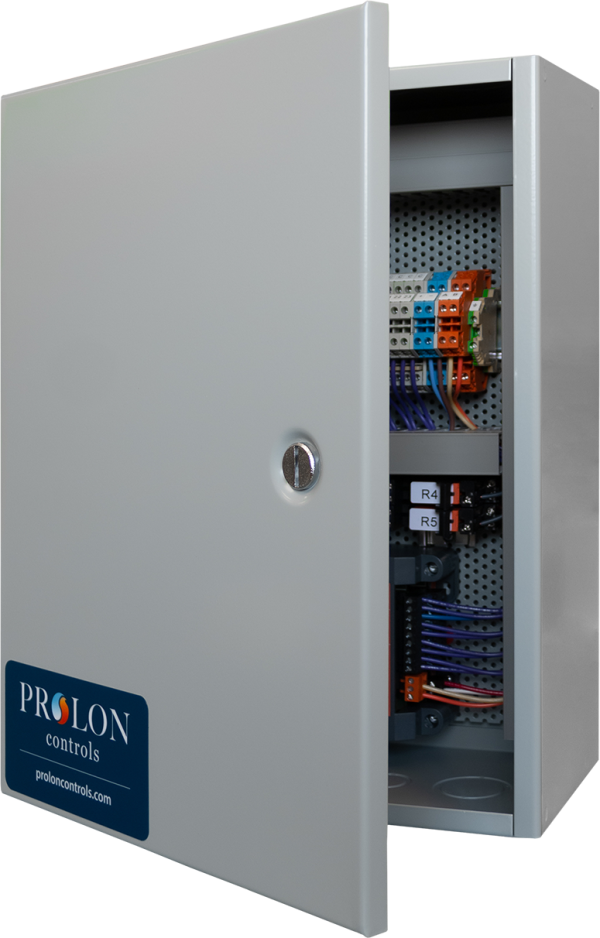

Single Controller Panels

Your choice of a M2000 or a C1050 controller in a prewired, UL certified panel ready for installation on any project. Its compact design allows for multiple panels to be installed in your work space and leaves your job with a clean, professional appearance.

Specifications
Documentation

- 1 M2000 or 1 C1050 controller of your choice built into a NEMA 1 Enclosure
- Dimensions: 16” (H) x 12” (W) x 6” (D) panel with top & bottom knockout holes
- Isolation relays (17A @ 277 VAC) on all 5 Digital Outputs
- Disconnect-style Slo-Blo fuse (3A @ 250 VAC), with additional replacement fuse included
- Terminal strip for all external connections (24VAC power supply, inputs, outputs, communication)
- Panel wiring diagram specific to controller program included in the panel door
- All inputs & outputs tested in factory for rapid installation
- Complete panel is UL508A Certified
