Flexible Input/Output Controller
The FlexIO controller is a general-purpose input/output controller capable of accomplishing a variety of customized control sequences. Hardware inputs accept most industry-standard signal types. Outputs can then act based upon local inputs and/or data received from the network: this allows for enhanced sequencing, flexibility, and functionality within a Prolon control system. This device is designed to fill in the gaps within your Prolon system where an application-specific controller just doesn’t quite get the job done.
-

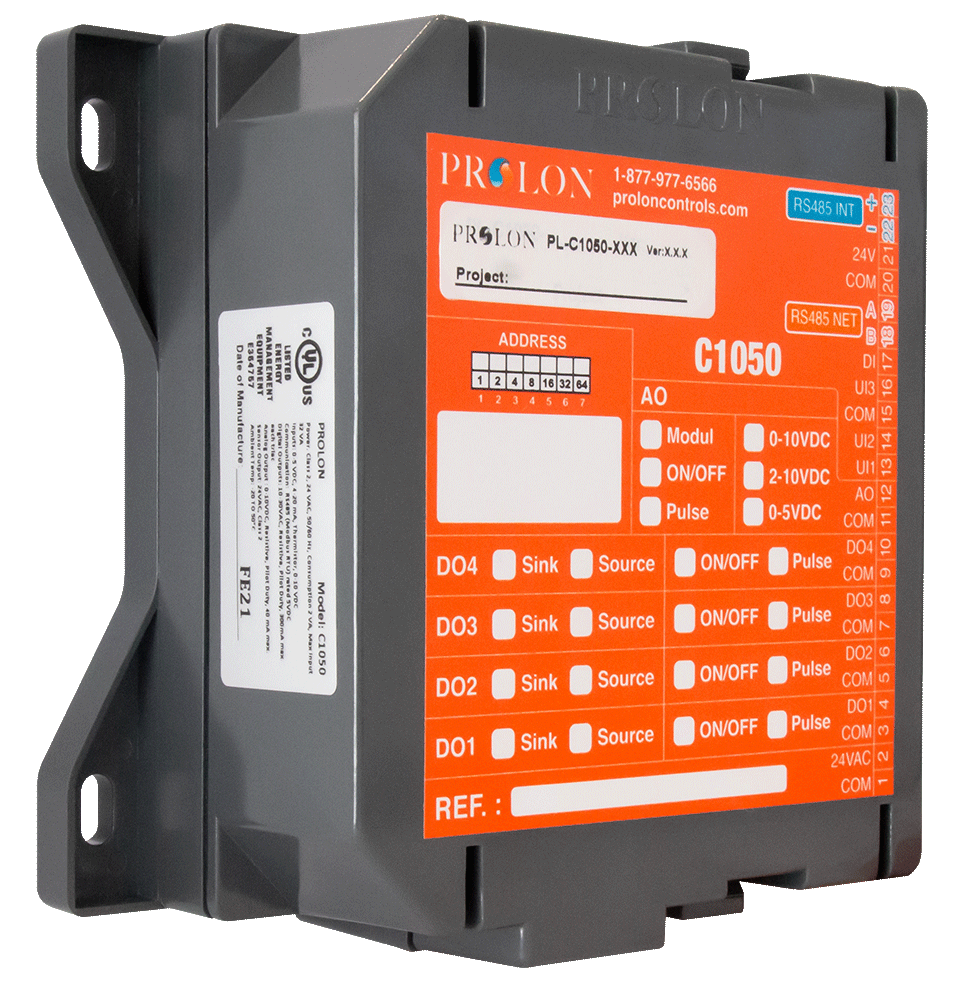

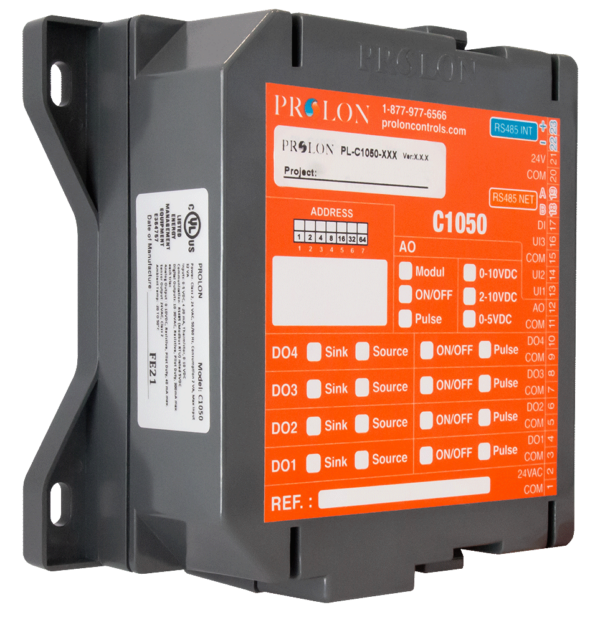

C1050
- Standalone or networked operation
- 3 Universal, 1 digital Input
- 4 digital, 1 analog output with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Inputs may be configured to be temperature, dry contact, pressure, gas, humidity, current, voltage, power, level, speed, flow and percentage
- Input signals include 10K-3 thermistor, dry contact, 0-5 VDC, 1-5 VDC, 0.5-4.5 VDC, 0-10VDC
- Configurable names and display options for each input and output
- Configurable scales for pressure and gas inputs accommodate any sensor
- Selectable modes for dry contact inputs
- Outputs can act based on any local input, or on data received from the network
- Multiple occupancy states from a Network Controller can be directed to specific individual outputs
- Various output logic sequences are available: ON/OFF, PI Loop, Direct or Reverse acting, Pulsed
- Outputs can be interlocked with each other
- OAT and/or occupancy can be used to override digital and analog outputs
- Operates standalone or can be integrated into a Prolon network
- Virtual Outputs available for additional control logic
- Outputs can be configured to maintain a fixed setpoint or a variable setpoint based on a reset curve
- 2 outputs can be linked together with Lead/Lag and Backup capabilities
- Digital Outputs have selectable Sync/Source switches

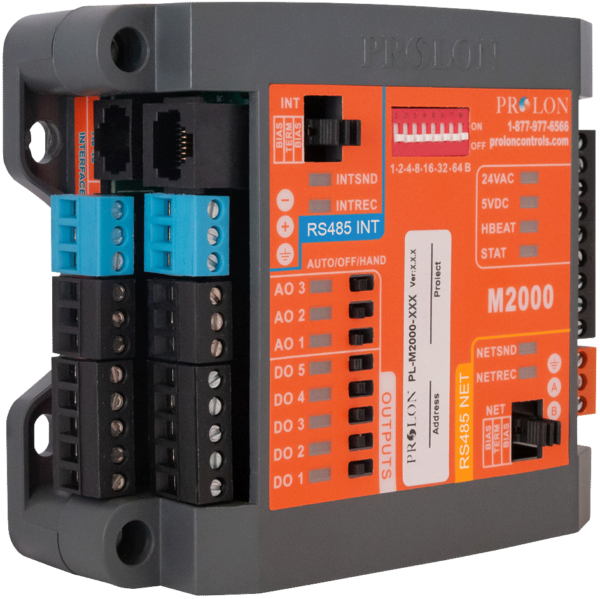

M2000
- Standalone or networked operation
- 9 Universal Inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Inputs may be configured to be temperature, dry contact, pressure, gas, humidity, current, voltage, power, level, speed, flow and percentage
- Input signals include 10k-3 thermistor, dry contact, 4-20mA, 0-20mA, 0-5 VDC, 1-5 VDC, 0.5-4.5 VDC
- Configurable names and display options for each input and output
- Configurable scales for pressure and gas inputs accommodate any sensor
- Selectable modes for dry contact inputs
- Outputs can act based on any local input, or on data received from the network
- Multiple occupancy states from a Network Controller can be directed to specific individual outputs
- Various output logic sequences are available: ON/OFF, PI Loop, Direct or Reverse acting, Pulsed
- Outputs can be interlocked with each other
- OAT and/or occupancy can be used to override digital and analog outputs
- Operates standalone or can be integrated into a Prolon network
- Virtual Outputs available for additional control logic
- Outputs can be configured to maintain a fixed setpoint or a variable setpoint based on a reset curve
- 2 outputs can be linked together with Lead/Lag and Backup capabilities
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
-
Specifications
C1050
- Standalone or networked operation
- 3 Universal, 1 digital Input
- 4 digital, 1 analog output with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Inputs may be configured to be temperature, dry contact, pressure, gas, humidity, current, voltage, power, level, speed, flow and percentage
- Input signals include 10K-3 thermistor, dry contact, 0-5 VDC, 1-5 VDC, 0.5-4.5 VDC, 0-10VDC
- Configurable names and display options for each input and output
- Configurable scales for pressure and gas inputs accommodate any sensor
- Selectable modes for dry contact inputs
- Outputs can act based on any local input, or on data received from the network
- Multiple occupancy states from a Network Controller can be directed to specific individual outputs
- Various output logic sequences are available: ON/OFF, PI Loop, Direct or Reverse acting, Pulsed
- Outputs can be interlocked with each other
- OAT and/or occupancy can be used to override digital and analog outputs
- Operates standalone or can be integrated into a Prolon network
- Virtual Outputs available for additional control logic
- Outputs can be configured to maintain a fixed setpoint or a variable setpoint based on a reset curve
- 2 outputs can be linked together with Lead/Lag and Backup capabilities
- Digital Outputs have selectable Sync/Source switches
M2000
- Standalone or networked operation
- 9 Universal Inputs
- 5 digital, 3 analog outputs with self-resetting fuses
- Quick and easy installation using detachable numbered terminal blocks
- Inputs may be configured to be temperature, dry contact, pressure, gas, humidity, current, voltage, power, level, speed, flow and percentage
- Input signals include 10k-3 thermistor, dry contact, 4-20mA, 0-20mA, 0-5 VDC, 1-5 VDC, 0.5-4.5 VDC
- Configurable names and display options for each input and output
- Configurable scales for pressure and gas inputs accommodate any sensor
- Selectable modes for dry contact inputs
- Outputs can act based on any local input, or on data received from the network
- Multiple occupancy states from a Network Controller can be directed to specific individual outputs
- Various output logic sequences are available: ON/OFF, PI Loop, Direct or Reverse acting, Pulsed
- Outputs can be interlocked with each other
- OAT and/or occupancy can be used to override digital and analog outputs
- Operates standalone or can be integrated into a Prolon network
- Virtual Outputs available for additional control logic
- Outputs can be configured to maintain a fixed setpoint or a variable setpoint based on a reset curve
- 2 outputs can be linked together with Lead/Lag and Backup capabilities
- Internal time clock with 7-day configurable schedule and holiday calendar
- Hand/Off/Auto switches on all 8 outputs
