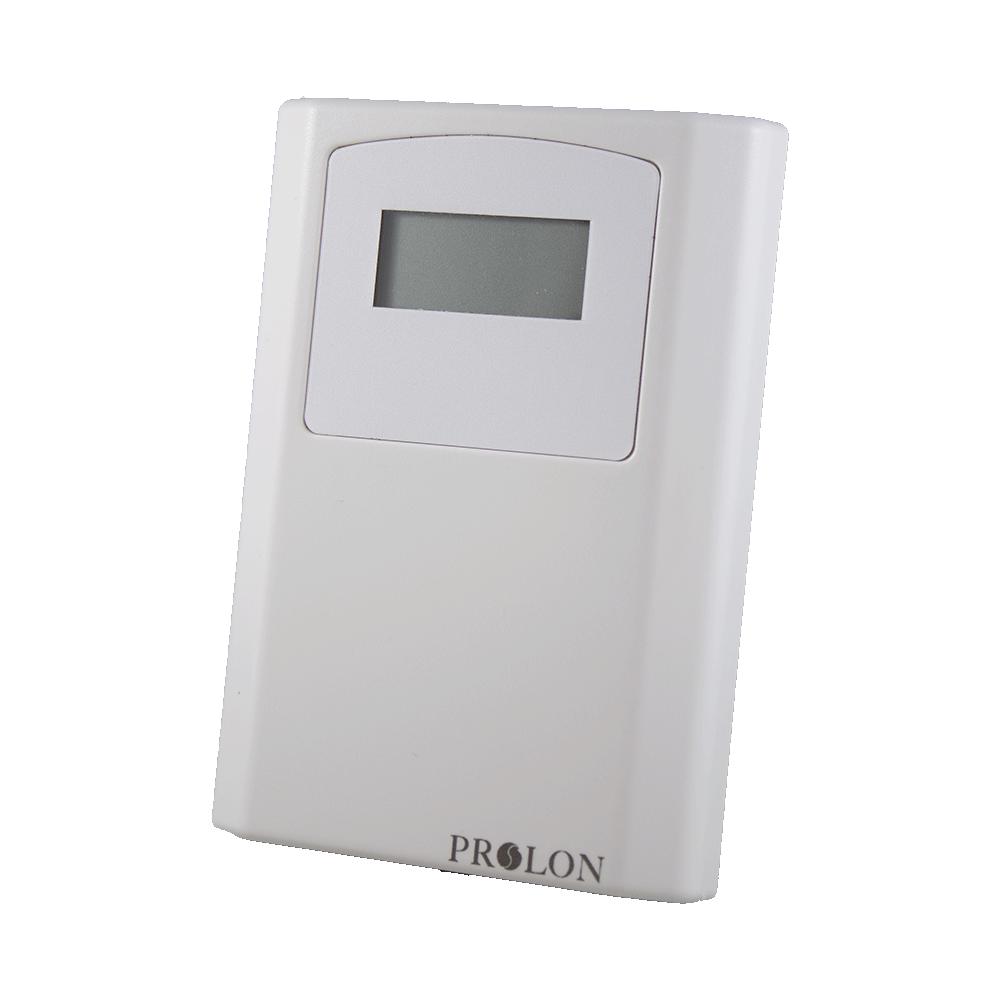

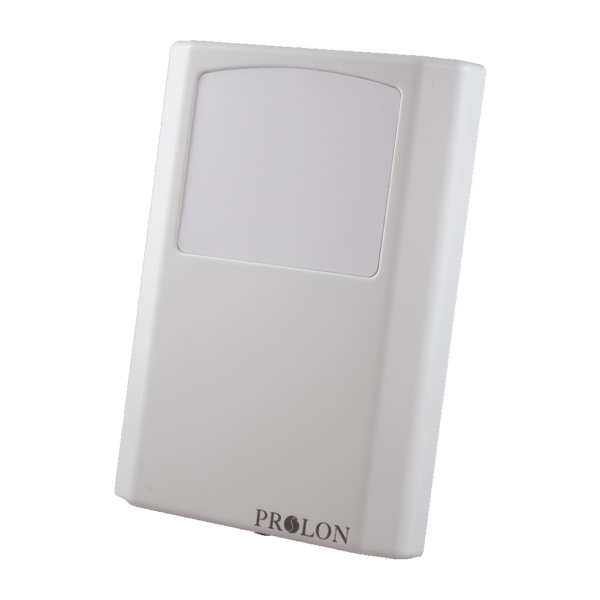

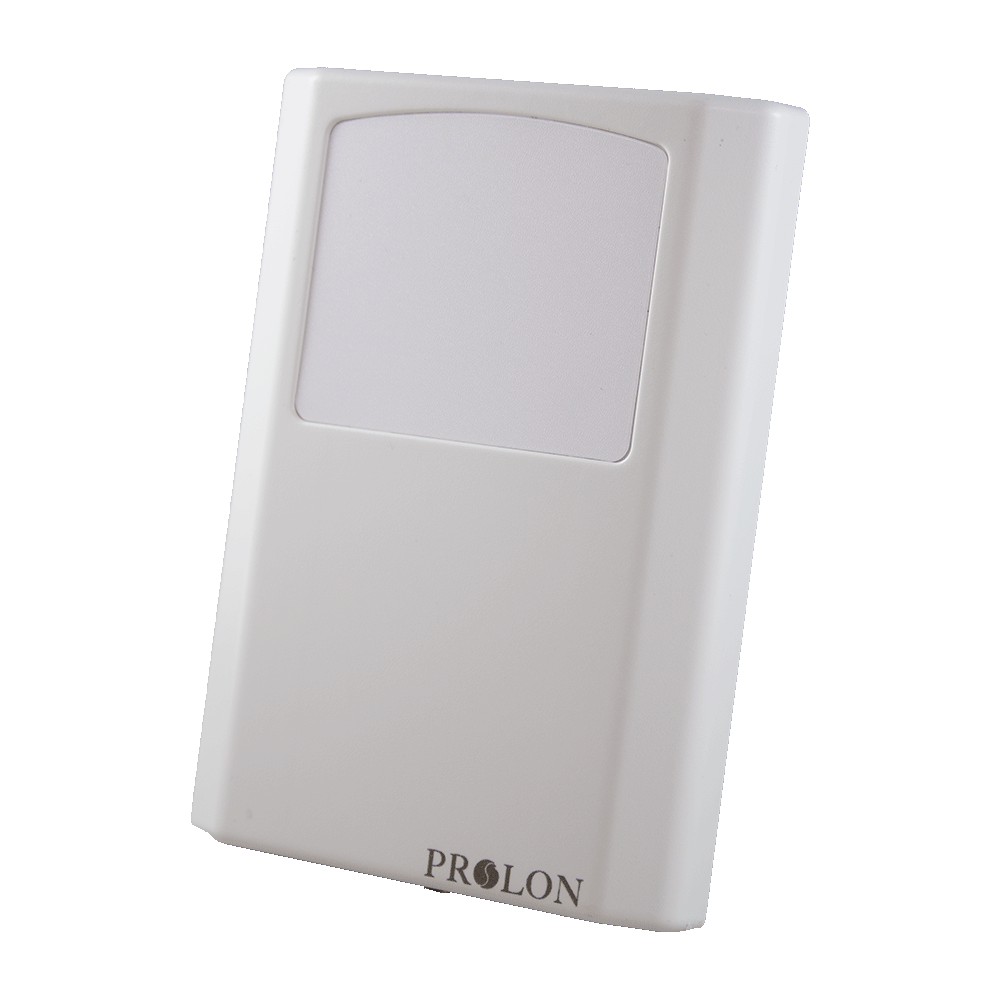

Room Carbon Dioxide (CO2) Transmitter

The room CO2 transmitter device uses a highly accurate and reliable nondispersive infrared (NDIR) sensor in an attractive, low profile enclosure for room applications to monitor CO2 levels. The sensor uses dual wavelength optics and LTA (long term adjustment) signal processing technology to deliver industry leading long-term accuracy and reliability.

    • Gas Type Detected: Carbon Dioxide (CO2)
    • Sensor Type: Dual channel non-dispersive infrared (NDIR)
    • Measurement Range: 0-2000ppm, adjustable 1000 – 10000ppm
    • Sensor Accuracy: ± (30ppm + 3% of measured value)
    • Output Signal Type: 4-20 mA (3-wire), 0-5 or 0-10 Vdc (field selectable)
    • Ambient Operating Range: 32 to 122°F (0 to 50°C), 5 to 90 %RH non-condensing
    • Enclosure: ABS, IP30 (NEMA 1)
  • Specifications
  • Documentation
