Bluetooth adapter

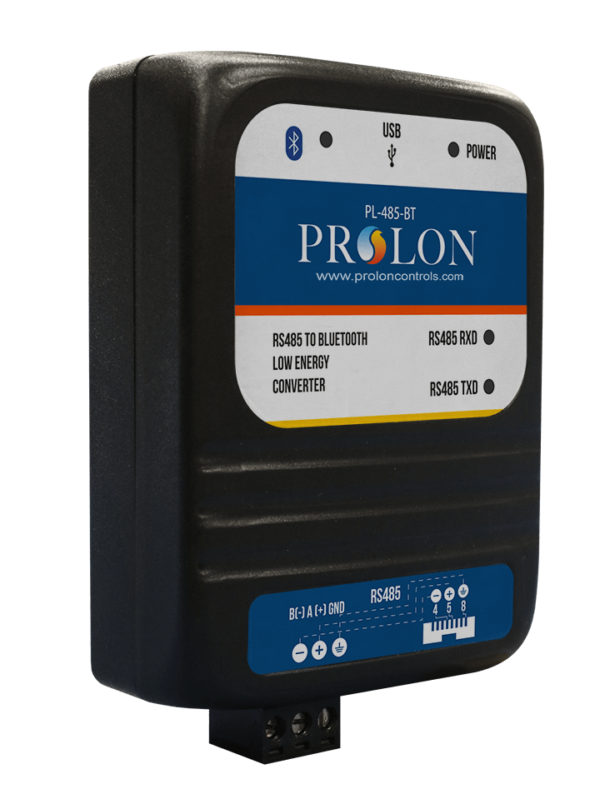

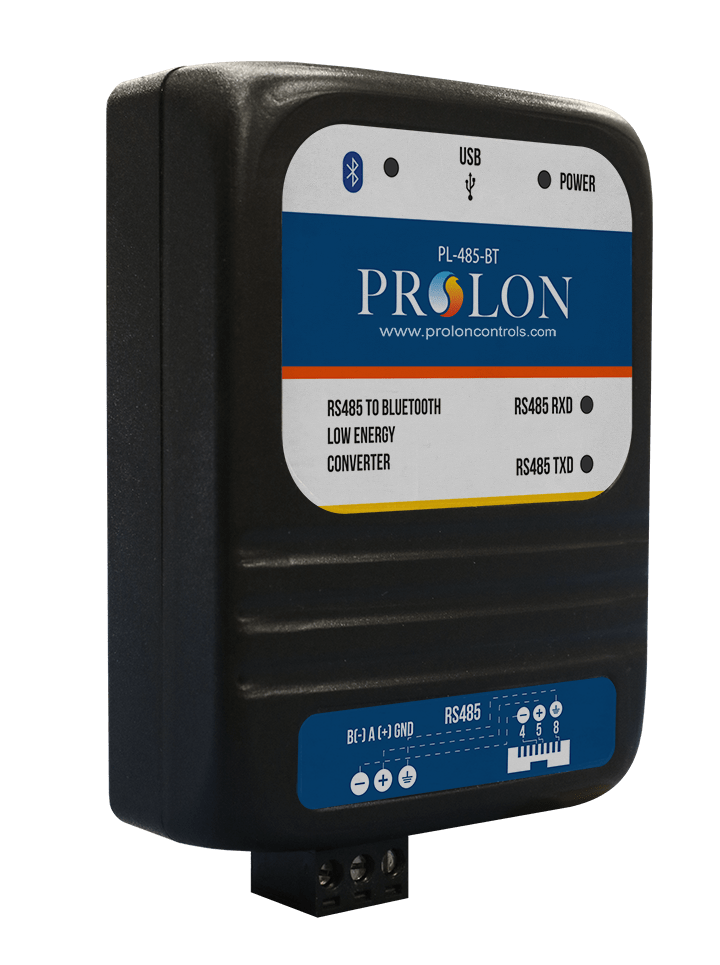

The PL-485-BT provides either a Bluetooth wireless connection or a wired USB connection for Prolon’s configuration software tools. Apple® and Android® tablets or smartphones may connect, view and configure a Prolon control system via Bluetooth 4.0 using Prolon’s free Focus applications. Windows® computers may use the PL-485-BT as a wired USB to RS485 converter for connection using Prolon’s Focus software. The PL-485-BT is the ideal tool for contractors and end users due to its simplicity and ease of use; it may be used as a portable, battery-powered tool, or it can be installed on site and powered via USB for permanent, local wireless access.
-
- Wireless: Bluetooth Low Energy v.4.0, GFSK Protocol, 2.4 GHz, 1 Mbps
- RS-485: 2-Wire with removable screw-terminal block and custom RJ45 jack
- Baud rates: 9600, 19200, 38400, 57600 (default), 115200 bps
- USB: USB 2.0 Type B wired connection
- 50 kV/µs transient immunity (typical)
- Optically isolated protection to 2500 Vrms for 1 minute (as per UL 1577)
- Integrated LEDs for RS485 TX/RX, power status and Bluetooth activity
- Battery life: 15 hours online/22 hours standby
- Empty battery fully charges in about 3 hours
- Physical on/off switch eliminates battery consumption when in off position
- Factory reset, passkey modification and more all available over software
Bluetooth Connection Requirements
- iOS Version 9.0 or newer
- Android 4.3 (Jelly Bean) or newer
- Current Prolon Focus Android® or Apple® application installed on mobile device
- Device must be capable of Bluetooth 4.0
-
Specifications
- Wireless: Bluetooth Low Energy v.4.0, GFSK Protocol, 2.4 GHz, 1 Mbps
- RS-485: 2-Wire with removable screw-terminal block and custom RJ45 jack
- Baud rates: 9600, 19200, 38400, 57600 (default), 115200 bps
- USB: USB 2.0 Type B wired connection
- 50 kV/µs transient immunity (typical)
- Optically isolated protection to 2500 Vrms for 1 minute (as per UL 1577)
- Integrated LEDs for RS485 TX/RX, power status and Bluetooth activity
- Battery life: 15 hours online/22 hours standby
- Empty battery fully charges in about 3 hours
- Physical on/off switch eliminates battery consumption when in off position
- Factory reset, passkey modification and more all available over software
Bluetooth Connection Requirements
- iOS Version 9.0 or newer
- Android 4.3 (Jelly Bean) or newer
- Current Prolon Focus Android® or Apple® application installed on mobile device
- Device must be capable of Bluetooth 4.0
