Unit Ventilator Controller
The Prolon Unit Ventilator Controller is designed for seamless integration with 2-pipe and 4-pipe unit ventilator systems and delivers precise temperature control while significantly improving indoor air quality. By optimizing airflow and minimizing energy waste, it creates a more comfortable and consistent environment—enhancing occupant comfort and promoting healthier indoor conditions.
The UNV Controller features an on-board microprocessor for accurate digital control, leveraging PI (Proportional-Integral) algorithms to ensure optimal HVAC performance. It supports a wide range of configurable sequences, including:
- Automatic 2-pipe mode changeover based on water temperature
- 4-pipe mode
- Automatic purge cycles to prevent coil stagnation
- Economizer & CO2 control and face & bypass damper sequencing
- Flexible scheduling and override capabilities
Configuration is simple and can be performed locally or remotely using Prolon’s free, intuitive software.
By monitoring dedicated inputs and executing pre-defined yet fully adjustable control strategies, the Prolon UNV maximizes both energy efficiency and operational flexibility—making it a smart and sustainable solution for modern unit ventilator systems.
-

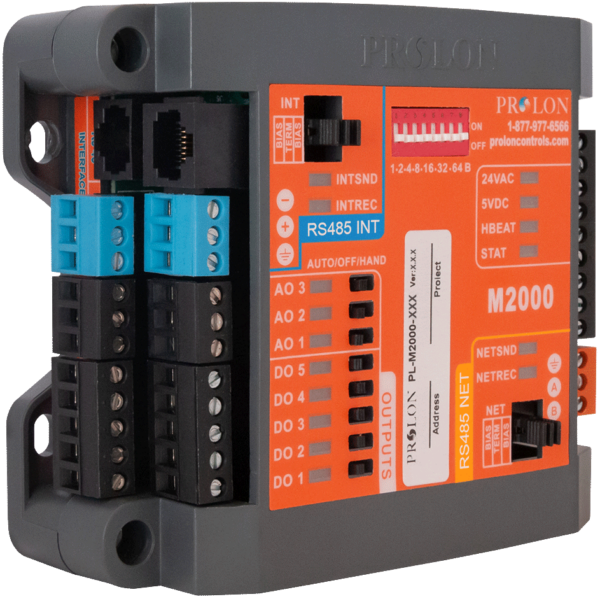

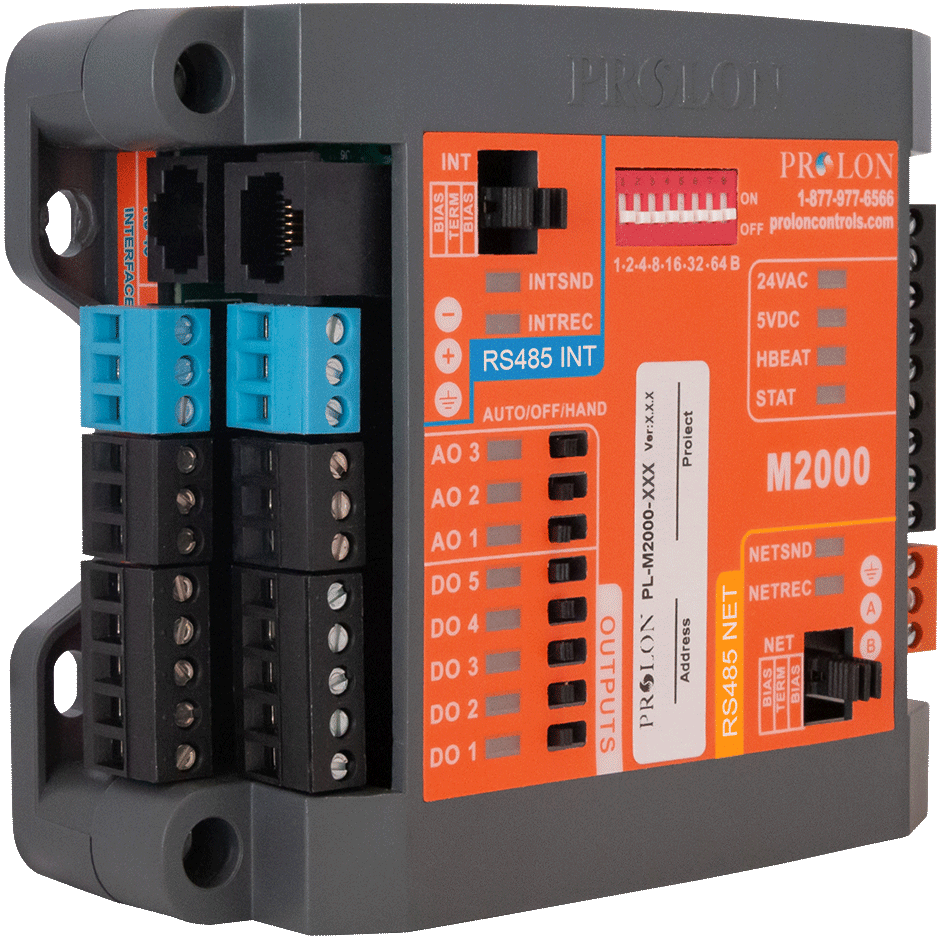

M2000-UNV
System Compatibility & Control
- Designed specifically for hydronic HVAC systems
- Controls space temperature using a single temperature sensor
- Supports On/Off or modulating valve control for heating and cooling
- Automatic changeover between heating and cooling on 2-pipe systems
Advanced Control Sequences
- Proportional-Integral (PI) control loops maximize system performance
- Face & Bypass sequence with integrated frost protection
- Optional Economizer sequence with CO2 control
- Configurable unoccupied mode sequences
- Multi-speed fan control options
- Several safety and efficiency limits, including freeze protection
Outputs & Hardware
- 5 digital outputs and 3 analog outputs, all with self-resetting fuses
- Manual/Off/Auto switch available for each of the eight outputs
Scheduling & Operation Modes
- Built-in internal clock with configurable schedules and calendars
- Operates as a stand-alone controller or can be networked (up to 127 nodes)
Configuration & Monitoring
- Remote monitoring and configuration via FREE Prolon Focus software
-
Specifications
M2000-UNV
System Compatibility & Control
- Designed specifically for hydronic HVAC systems
- Controls space temperature using a single temperature sensor
- Supports On/Off or modulating valve control for heating and cooling
- Automatic changeover between heating and cooling on 2-pipe systems
Advanced Control Sequences
- Proportional-Integral (PI) control loops maximize system performance
- Face & Bypass sequence with integrated frost protection
- Optional Economizer sequence with CO2 control
- Configurable unoccupied mode sequences
- Multi-speed fan control options
- Several safety and efficiency limits, including freeze protection
Outputs & Hardware
- 5 digital outputs and 3 analog outputs, all with self-resetting fuses
- Manual/Off/Auto switch available for each of the eight outputs
Scheduling & Operation Modes
- Built-in internal clock with configurable schedules and calendars
- Operates as a stand-alone controller or can be networked (up to 127 nodes)
Configuration & Monitoring
- Remote monitoring and configuration via FREE Prolon Focus software
