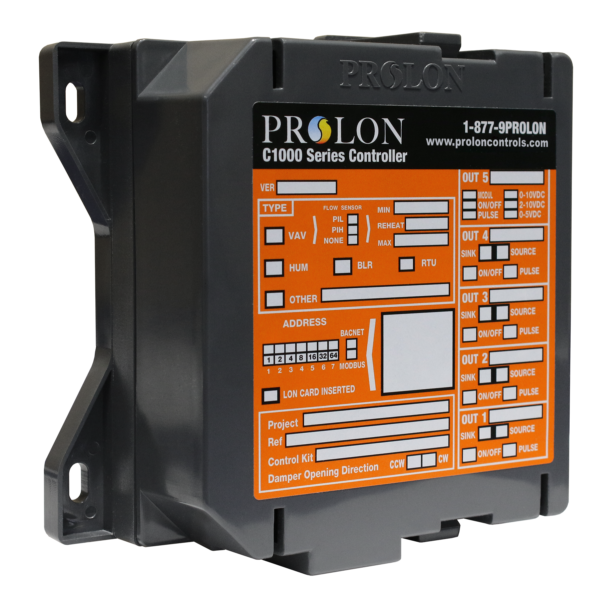

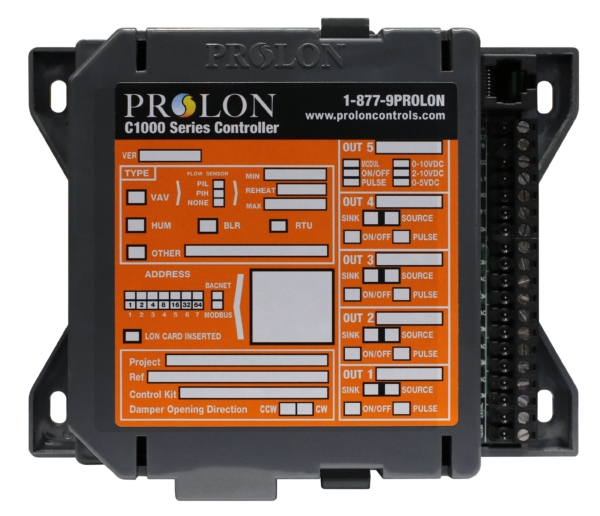

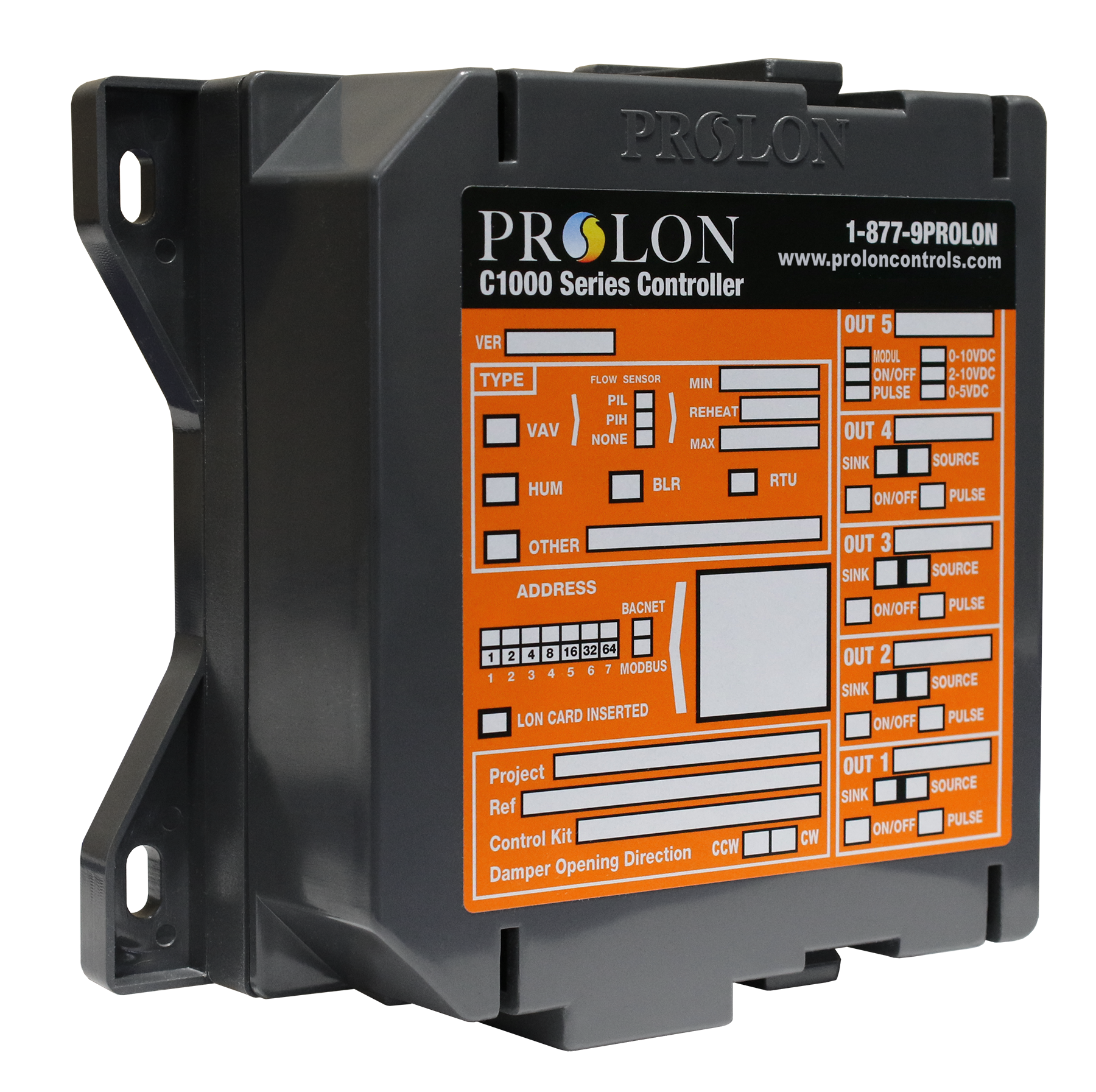

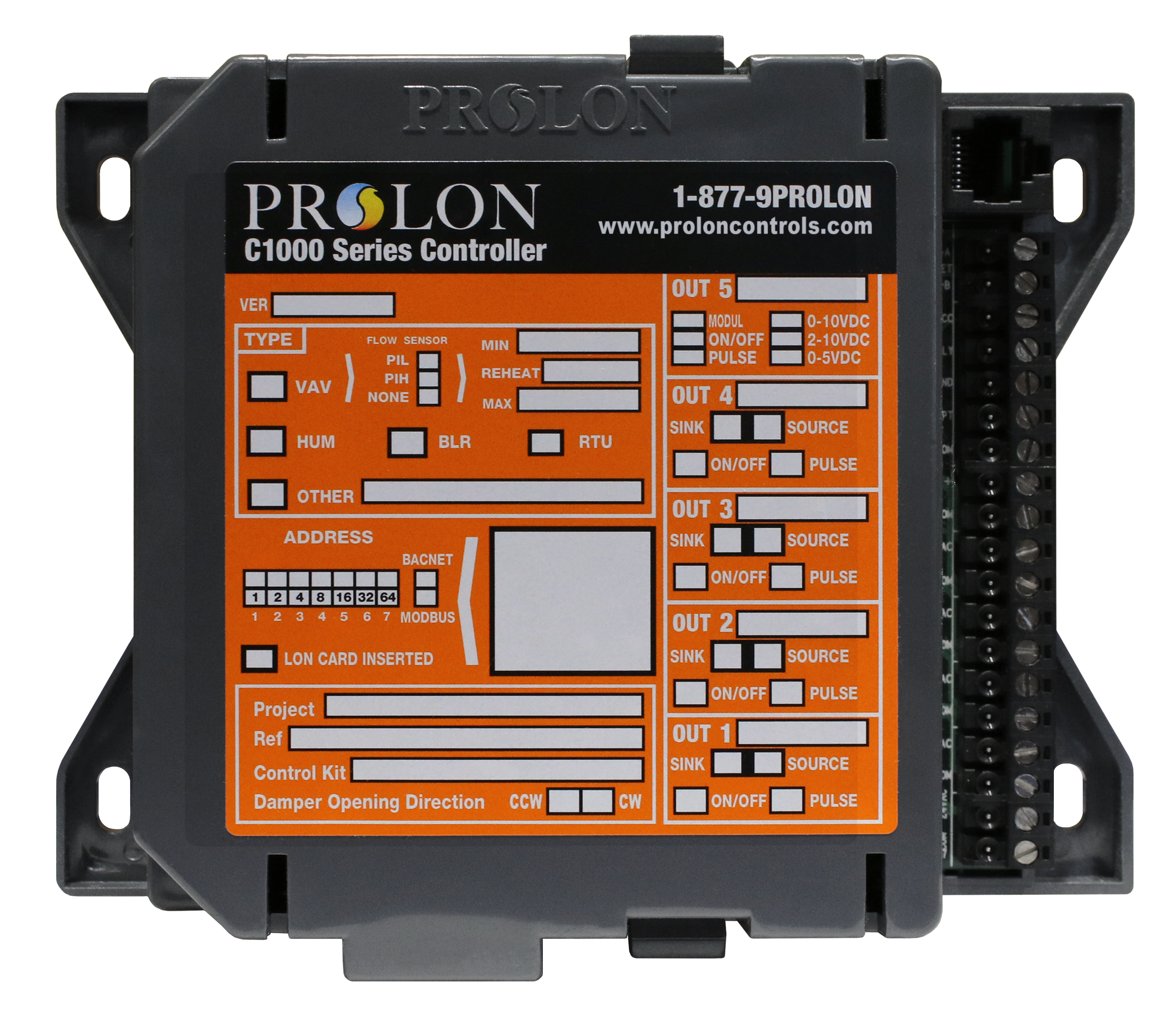

C1000 Controller
The C1000 is the predecessor to the C1050 series. This product is archived and no longer sold, but may still be currently installed in buildings. The C1000 controller is a platform used for a various types of controllers and applications.
-
Applications
- VAV Zone Controller
- Boiler
- Chiller
- Rooftop Unit
- Heatpump
- Humidity
- Water Loop
- FlexIO
Specifications

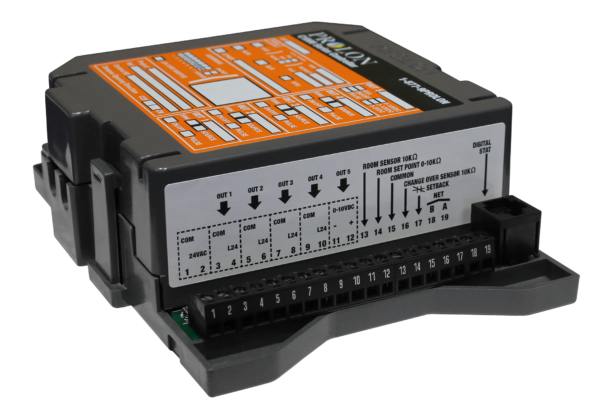

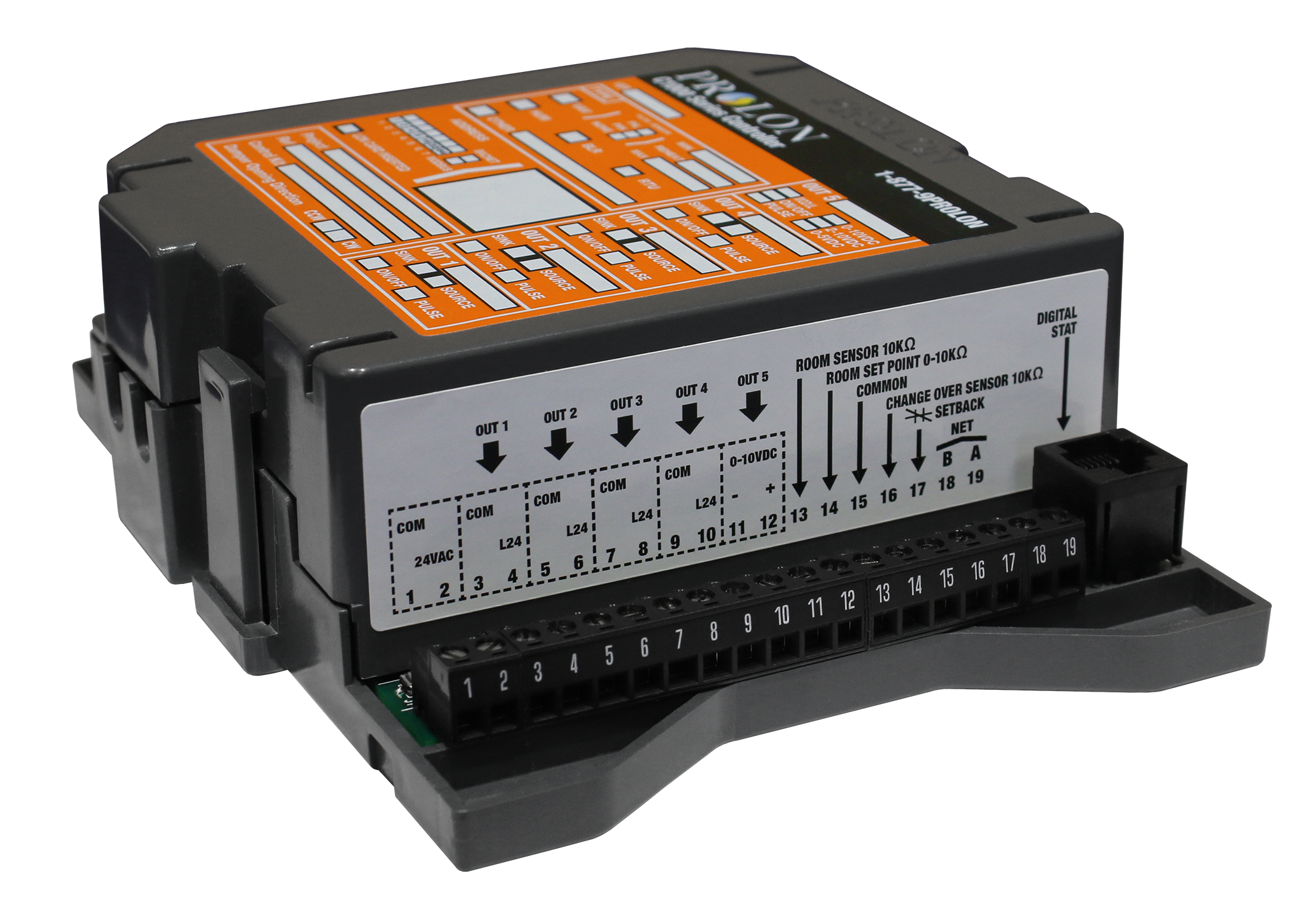

- 4 digital outputs and 1 analog output equipped with resettable fuses
- 3 analog and 1 digital inputs
- Proportional integral (PI) control loops maximize performance
- Stand-alone or networked (up to 127 nodes)
- Built-in protection sequences with configurable temperature limits and minimum delays
- Configurable unoccupied mode sequences
- Remote monitoring and configuration with FREE Prolon Focus software
- FlexiZone system facilitates multiple zone management by evaluating the average weighted demand of the zones using customized groups
-
- Firmware C1000_Boiler_V740
- Firmware C1000_Chiller_V740
- Firmware C1000_Fan_Coil_V740
- Firmware C1000_Flexio_V740
- Firmware C1000_Heatpump_V740
- Firmware C1000_Humidity_V740
- Firmware C1000_Rooftop_V740
- Firmware C1000_Single_Zone_Heatpump_V740
- Firmware C1000_Single_Zone_Rooftop_V740
- Firmware C1000_VAV_Controller_V740
- Firmware C1000_Water_Loop_V740
-
